Turbine Flowmeter
Liquid turbine flowmeter...
产品详情
liquid turbine gps oil flow meter
Liquid Turbine Flow Meter Description
HKT series turbine flowmeter is a kind of speed flowmeter. The sensor of turbine flow meter has the advantages of simple structure, lightweight, high precision, good reproducibility and quick response. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is the best choice for flow measurement and energy saving.

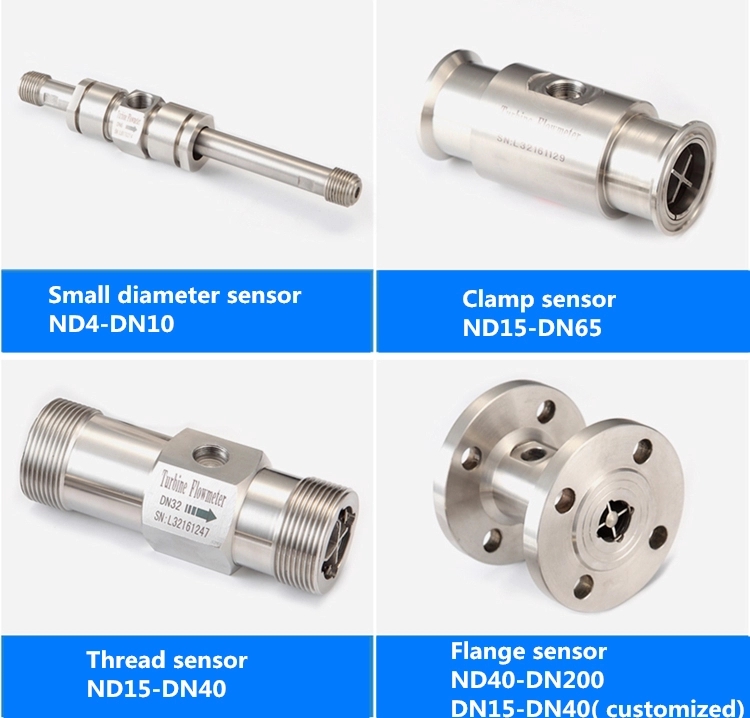

Types of flow sensor
Liquid Turbine Flow Meter Parameter
|
Medium |
Non Corrosive Liquid( Water,Ethanol,Diesel etc) |
|
Nominal Diameter |
DN4-DN200 |
|
Span |
0.04~800m³/h |
|
Rated Pressure |
1.6MPa~6.3MPa Max Customize to 42MPa |
|
Accuracy Level |
±1.0%R 0.5% Selectable |
|
Repeatablility |
±0.1% |
|
Range Ration |
1:10,1:15,1:20 |
|
Material |
Body/Rotor Support:SS304(SS316L optional) |
|
Impeller:Double Phase Steel |
|
|
Shaft:Stainless Steel |
|
|
Bearing:Stainless Steel Ball Bearing |
|
|
Process Connection |
Flange/Thread |
|
Working Condition |
Medium Temperature:-20℃~+120℃ |
|
Ambient Temperature:-20℃~+55℃ |
|
|
Rated Humidity:5%~90% |
|
|
Ambient Pressure:86KPa~106KPa |
|
|
Power |
24VDC |
|
3V 10AH lithium battery. |
|
|
Consumption |
24VDC power:<1W |
|
Battery:≤1W,lifetime>3yrs |
|
|
Signal Output |
Pulse,4-20mA,Switch Signal. |
|
DIgital Communication |
RS485,MODBUS,HART,PROFIBUS-DP |
|
Signal wire joint |
Hausman joint/Inner screw M20*1.5 or customized |
|
Explosion Proof Grade |
ExdIIBT6/ExiaIICT4 |
|
Degree of Protection |
IP65 or Higher |
Liquid Turbine Flow Meter Application
Turbine flow meter is suitable for liquid flow measurement. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is an ideal meter for flow measurement and energy saving.
